Innovation
Synergy's in-house team of software developers and engineers are constantly creating fit-for-purpose solutions to ensure operation readiness and excellence at client’s facilities.

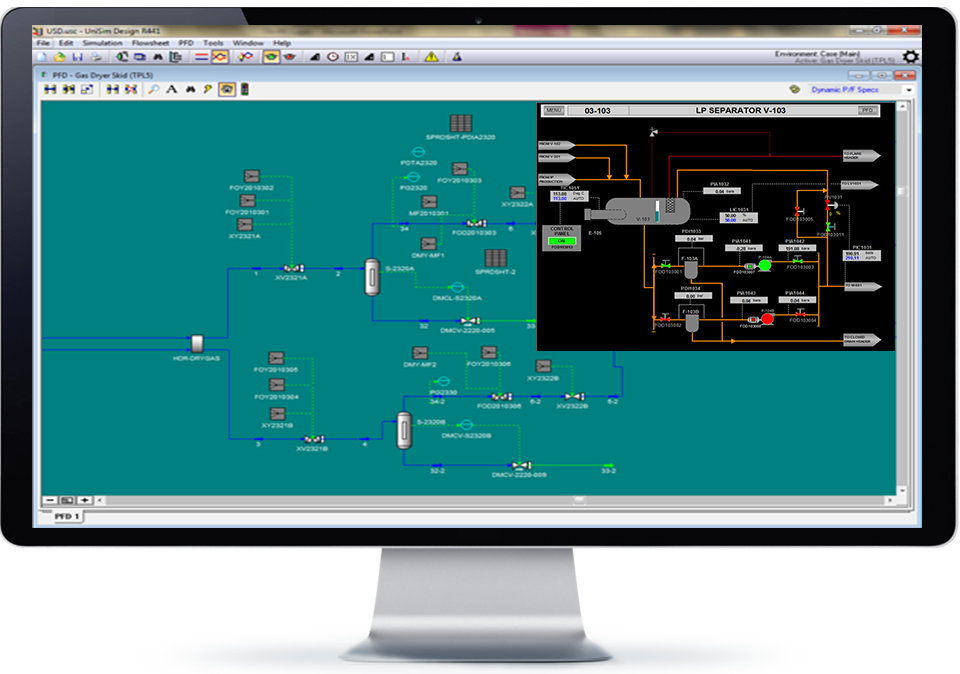

Operator Training Simulators
A dynamic simulation build in the software to mimic plant behavior and condition for training purposes without risk inherent in similar real life experience.
Main Feature and Benefit:
- Immersive Training
- No spare DCS require as response of control is resides in the simulation (standard algorithms)
- Web based GUI to replicate DCS GUI
- One -year site support

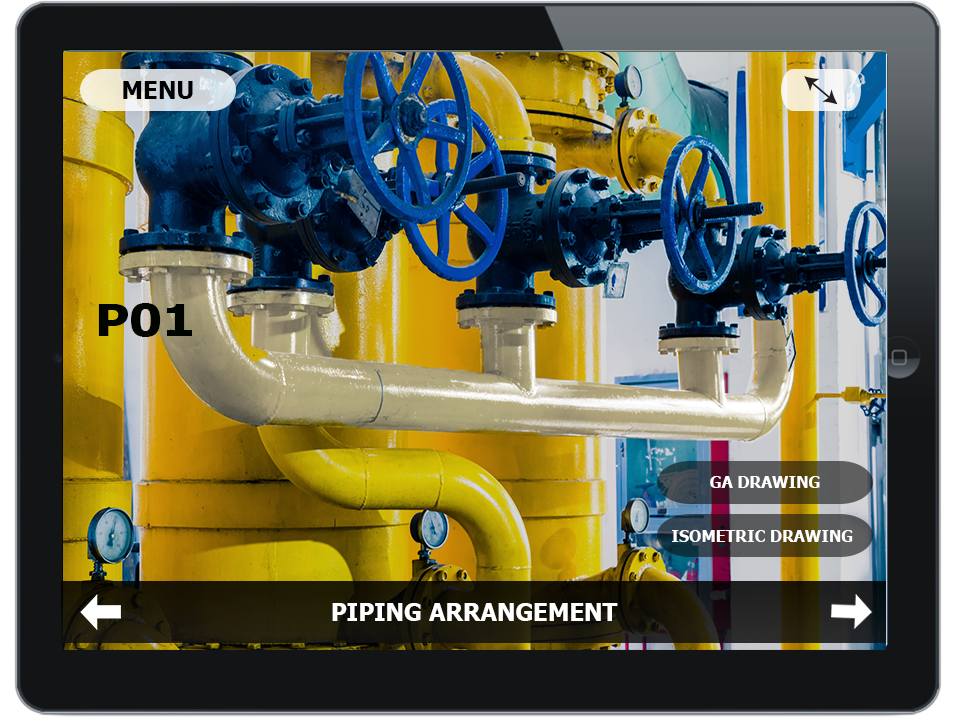

Augmented Reality (AR/ VR) supported Operation & Maintenance Manual
An immersive work order manual to facilitate onsite operator on operation and maintenance of specific technical equipment or operation plant in general.
Main Feature and Benefit:
- Real time drawing and document review
- Preventive maintenance (specific equipment assembly instruction, service inspection order, compliance checklist)
- Product Lifecycle Management (PLM) information (specific equipment history and maintenance record)
- Capable to implement in any internet-connected mobile device/ HMD
Process Dashboard
A bespoke plant lifecycle information management tool that simplifies complex data sets into a glance awareness of performance
Main Feature and Benefit:
- Real time data retrieve from data point through sensor installed
- Lead and lag indicator (real time operating condition of equipment in plant)
- Product Lifecycle Management (PLM) information (specific equipment history and maintenance record)

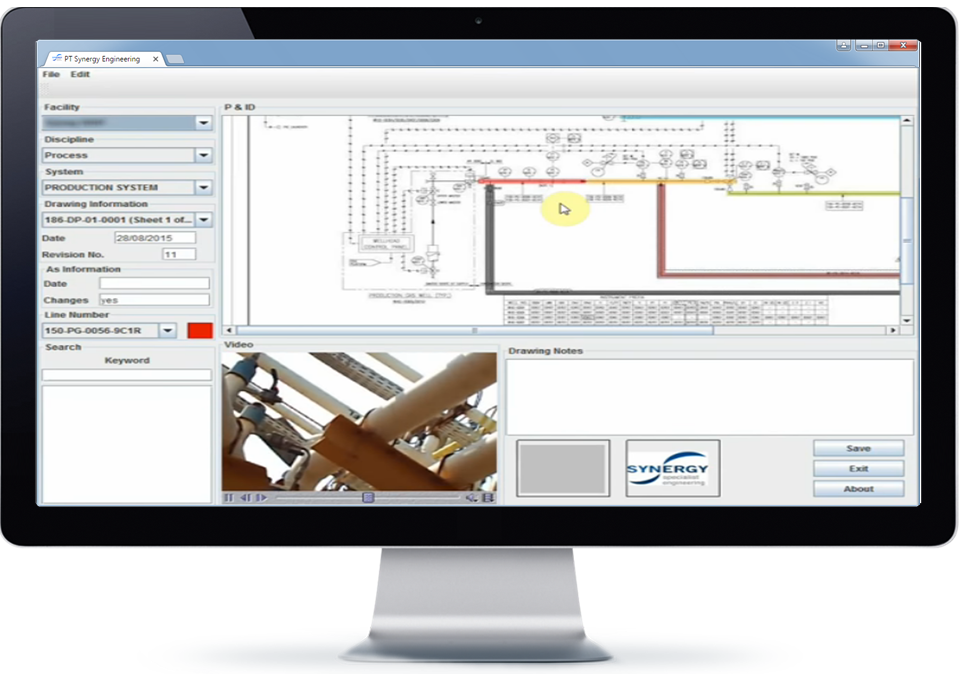

Site-As building
A bespoke tool that links lines P&IDs with video recordings of the actual equipment on site. The tool is presented as a desktop application with a straightforward, intuitive user interface. The application is provided free-of-charge as part of Synergy's as-building service package.
Main Feature and Benefit:
- Video-based as-building linked to P&IDs
- Web-based facility information database
- Unmanned aerial vehicle (UAV) photography and inspection
- Specialist inspection services (e.g. thermographic surveys, thermal radiation monitoring, etc)
- Free-of-charge as part of the service package, with no recurring maintenance fees

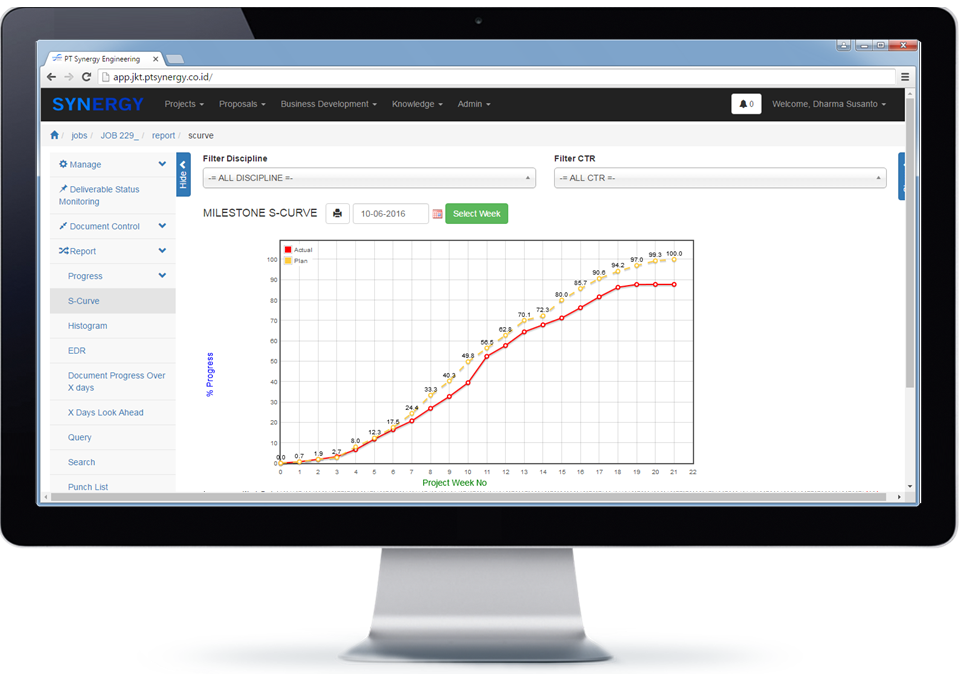

Synergy Business System
An integrated suite of web-based business applications, which is utilised by Synergy employee across Southeast Asia for all business activities - from project pursuit to execution and closeout - Module of the suit available includes project management, cost estimation, proposal tracking, business development tracking, knowledge base, project references, human resources, wiki, staff directory and timesheets.
Main Feature and Benefit:
- Hierarchically structured database of unit cost information for equipment based on quotations and tools.
- Tracks potential opportunities through the entire sales funnel from lead to award, including a record of all actions completed and automatic action plan generation.
- Automates technical calculations across all disciplines, including functionality for Excel spreadsheet export and data import from commonly used software packages, e.g. HYSYS.

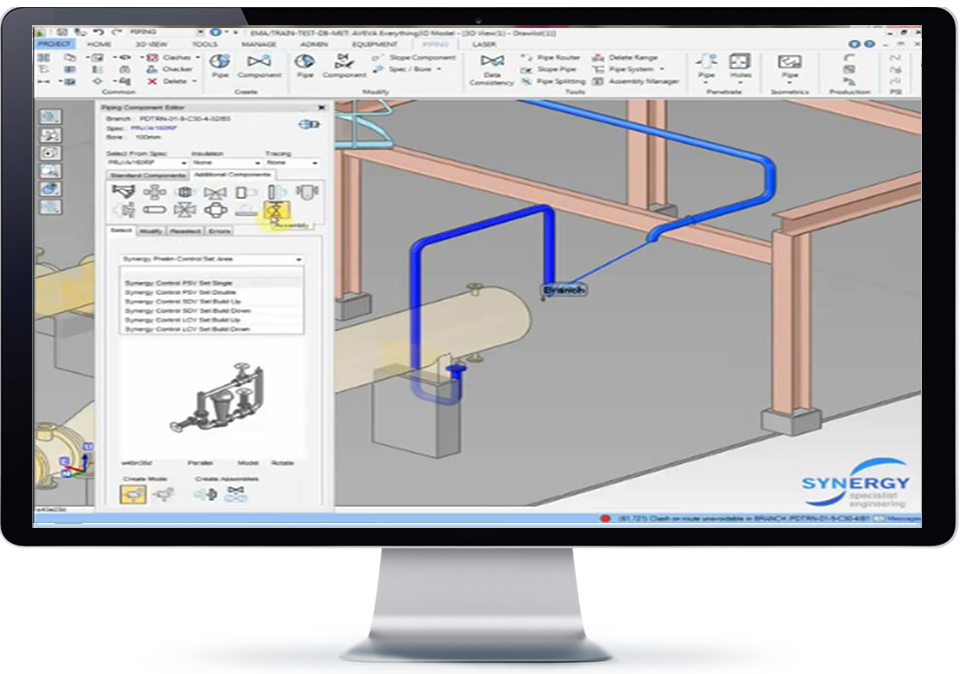

Smart 3D Plant Design
Synergy Smart 3D plant design platform is a set of proprietary custom extensions to 3D design software packages that is used to facilitate the standard design workflow and perform automate 2D drawing production across all major disciplines operating in a single team.
3D Modeling and Design
The 3D design process begins with building and laying out 3D model primitives for the equipment and piping in the plant, based on process P&IDs. The 3D model primitives are then enhanced by adding intelligent links to project documents and drawings, e.g. P&IDs, line lists, Vendor general arrangements, etc.
3D Model Management
Underpinning the data integrity of the model is the Synergy Clash Manager, which stores clashes locally in the 3D model database and allows the real-time update, resolution and approval of clashes.
2D Drawing Production
3D model can be developed and checked through to completion, the system is then configured for 2D drawing production – discipline-specific drawings with custom annotations can then be generated. The following series of videos shows examples of how the base templates can be used by the Designers to develop different types of discipline-specific drawings, e.g.
- Equipment Layout Drawings
- Piping General Arrangement Drawings
- Safety Access Drawings
- Hazardous Area Classification Drawings
- Pipe Support Drawings
- Pipe Spool Fabrication Drawings
- Equipment General Arrangement Drawings
- Piping Isometric Drawings
